Ticket redemption kiosks
Ticket redemption kiosks that take payouts off your counter.
Every RedPlum kiosk is a ticket redemption kiosk and a cash redemption kiosk in one. It reads the encrypted ticket a skill game machine prints, checks it hasn't already been paid, and dispenses the cash, with no staff involved. There are six models, from the countertop C200 to the 7,200-bill EX450, and the newest is the F600-V.
Or call +1-888-773-3758, 9 AM to 9 PM, seven days a week.
- Kiosk models
- 6
- Bills on hand, EX450
- 7,200
- Fastest dispense, E450 and EX450
- 4 / sec
- Form factors: standup, or counter and wall
- 2
- Encrypted ticket, read by all six
- 1
Newest model · F600-V
The F600-V: a faster payout in a 13.78-inch footprint.
The F600-V pays out at 3.2 bills a second, 60% faster than the F600, from a cabinet only 13.78 inches wide. It fits the corner or aisle gap a wider kiosk can't use, and it takes three or four cassettes, depending on how much cash the room needs.
- Wide · 64.05" tall · 22.83" deep
- 13.78"
- Dispense speed
- 3.2 bills / sec
- Bills, from 3 or 4 cassettes of 500
- 1,500 / 2,000
- PCAP touchscreen
- 15.6"
The lineup
Six kiosks. Pick by footprint and cash volume.
They all read the same ticket and report to the same place. Where it stands and how often you want to refill it decide which one you need.
Standup
For the floor, next to your machines
F600-VNewest
Cash capacity1,500 to 2,000 bills
H × D × W64.05 × 22.83 × 13.78"
Dispense3.2 bills/sec
The fastest payout of the slim kiosks, in a 13.78-inch-wide cabinet.
F600-V ticket redemption kiosk

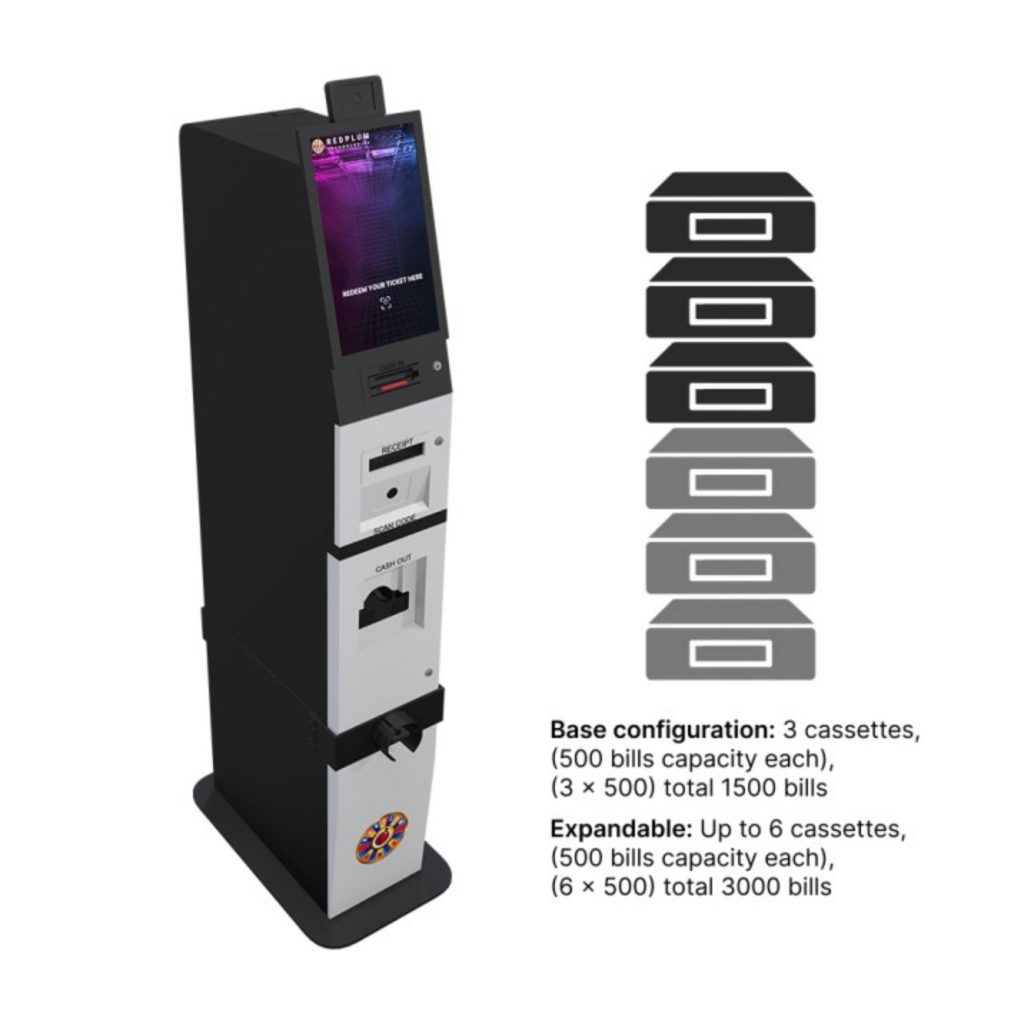

F600Standup
Cash capacity1,500 to 3,000 bills
H × D × W64.05 × 22.83 × 13.78"
Dispense2 bills/sec
The same slim cabinet, expandable to six cassettes.
F600 ticket redemption kiosk
E450Standup
Cash capacity4,000 bills
H × D × W63.32 × 21.28 × 15.57"
Dispense4 bills/sec
Mid-size venues. A 21.5" touchscreen and a 5 mm safe door.
E450 ticket redemption kiosk
EX450Most cash
Cash capacity7,200 bills
H × D × W63.32 × 25.49 × 15.51"
Dispense4 bills/sec
High-volume locations that would otherwise need a mid-day fill.
EX450 ticket redemption kiosk
Countertop or wall
Behind the counter or on the bar
C200Counter / wall
Cash capacity2,000 bills
H × D × W27.55 × 17.16 × 14.17"
Touchscreen10.1"
Counters and bar tops. A wall-mount bracket is available.
C200 ticket redemption kiosk
FD300Counter / wall
Cash capacity1,500 bills
Size22.0 × 20.4 × 18.3"
ScannerQR code
Counters where scanning the ticket's code is the whole job.
FD300 ticket redemption kiosk
Compare
All six, side by side.
Every spec we publish, in one table. Need it on paper? Download the 2026 product sheet (PDF).
| Model | F600-VNewest | F600Standup | E450Standup | EX450Standup | C200Counter / wall | FD300Counter / wall |
|---|---|---|---|---|---|---|
| Best suited for | Tight floor space, faster payout | Tight floor space, room to grow | Mid-size venues | High-volume locations | Counter and bar tops | Counters, scan-first |
| H × D × W (in) | 64.05 × 22.83 × 13.78 | 64.05 × 22.83 × 13.78 | 63.32 × 21.28 × 15.57 | 63.32 × 25.49 × 15.51 | 27.55 × 17.16 × 14.17 | 22.0 × 20.4 × 18.3 |
| Cash capacity | 1,500 / 2,000 bills | 1,500 / 2,000 / 3,000 bills | 4,000 bills | 7,200 bills | 2,000 bills | 1,500 bills |
| Cassettes | 3 or 4 × 500 | 3, 4 or 6 × 500 | 4 × 1,000 | 4 × 1,800 | 2 × 1,000 | 3 × 500 |
| Dispense speed | 3.2 bills/sec | 2 bills/sec | 4 bills/sec | 4 bills/sec | 4 bills/sec | On request |
| Touchscreen | 15.6" PCAP | 15.6" PCAP | 21.5" capacitive | 21.5" capacitive | 10.1" capacitive | On request |
| Ticket scanner | Encrypted barcode | Encrypted barcode | Superlead QR | Superlead QR | Superlead QR | QR code |
| Printer | Optional | Optional | Custom K80 | Custom K80 | Custom K80 | On request |
| Security | Safe belt, padlock | Safe belt, padlock | 5 mm safe door, electronic lock | 5 mm safe door, electronic lock | 5 mm safe door, electronic lock | On request |
| Connectivity | Ethernet, Wi-Fi | Ethernet, Wi-Fi | Ethernet, Wi-Fi | Ethernet, Wi-Fi | Ethernet, Wi-Fi | On request |
| HD webcam | Built in | Built in | Built in | Built in | Built in | On request |
| Audio | Stereo, 2 speakers | Stereo, 2 speakers | Stereo, 2 speakers | Stereo, 2 speakers | Stereo, 2 speakers | On request |
| Full specs | F600-V → | F600 → | E450 → | EX450 → | C200 → | FD300 → |
"On request" means we'll give you that figure directly. Call or use the quote form below.
Why a kiosk
What a ticket redemption machine takes off your staff.
It works like slot machine ticket redemption in a casino, sized for a store, bar or truck stop. Of all the ticket redemption solutions, a skill game kiosk is the one that needs nobody behind the counter.
Players redeem their own tickets, so staff stop counting cash for every win and the line at the register stays short.
The kiosk checks each encrypted ticket before any cash comes out, and it rejects copies and tickets that have already been paid.
Every payout lands in RedPlum Connect, with daily accounting reports and automated email alerts, so a count that's off is found the same day.
Capacity runs from 1,500 to 7,200 bills. Size the kiosk to how often you want to restock, not the other way round.
How a payout works
From the cabinet's ticket to cash in hand.
The kiosk is the step where a win becomes cash. Here's where it sits in the RedPlum ecosystem.
-
01Cabinet
Prints the ticket
Every Solaris Game Cabinet issues an encrypted QR ticket when the player cashes out.
Skill game machines -
02Kiosk
Checks it
The kiosk scans the code and confirms the ticket is genuine and unpaid. Floor staff can do the same from a phone.
RedPlum Validator -
03Kiosk
Pays it out
The cash is dispensed, at up to 4 bills a second, and the ticket is marked paid. RedPlum Live tracks the cash left in every kiosk, so you know when to refill.
RedPlum Live -
04RedPlum Connect
Reports on it
Every payout is in your reports, with alerts across every location you run.
RedPlum Connect
In every model
Whichever kiosk you pick, it does this.
Every ticket is validated before a payout. Reused and invalid tickets are refused.
With the optional Pyramid Sentry, the kiosk also pays tickets from machines that use Pyramid printers.
Available as an add-on. Ask sales which models and configurations support it.
The camera records an image every time cash is dispensed, so a disputed payout can be checked. Nothing extra to mount or wire.
Wired where you have a port, wireless where you don't.
Real-time reports, daily accounting and automated email alerts for every kiosk you run.
Cash management
Know where the cash is, at every kiosk.
A cash redemption kiosk does the counting your staff used to do, and tells you when something needs attention, so a problem is caught before it costs you a shift's revenue.
Cash reconciliation and float management are built in, so what went out matches what was paid, kiosk by kiosk.
Automated email alerts go to one or more addresses when a kiosk runs low on cash or a ticket jams, with daily accounting reports alongside.
The built-in webcam records an image whenever cash is dispensed, an extra layer of protection against fraud.
Ticket volumes and redemption activity by location, so you can see when the floor is busiest and plan refills around it.
Getting started
From first call to first payout.
Adding a ticket redemption kiosk to a location takes four steps, and we handle the setup with you.
-
01Inquiry
Tell us about the location
Call or send the form below with the venue, the floor space and the machines you run.
-
02Quote
Quotation and approval
Sales recommends a model and configuration and sends a price. Nothing ships until you approve it.
-
03Install
Installation and setup
We help install the kiosk, pair it with your machines and existing systems, and make sure it pays out from day one.
-
04Support
Support and updates
A support line from 9 AM to 9 PM, seven days a week, remote help when you need it, and regular software updates.
FAQ
Questions operators ask about redemption kiosks.
Ticket redemption kiosk, machine or terminal: what's the difference?
None. They're three names for the same thing. Because it pays out in cash, you'll also hear it called a cash redemption kiosk, cash redemption machine or cash redemption terminal. At RedPlum it's the same six models, whatever you call them.
How does a ticket redemption kiosk work?
The player scans the ticket their skill game machine printed. The kiosk validates it, works out the payout, dispenses the cash and marks the ticket paid, so it can't be redeemed twice.
Which tickets can the kiosks pay out?
Tickets from every RedPlum machine. With the optional Pyramid Sentry, they also accept tickets from other machines that use Pyramid printers.
Which kiosk suits a high-volume location?
The EX450. It holds 7,200 bills across four cassettes and dispenses 4 bills a second. The E450 has the same screen, safe door and dispense speed, with 4,000 bills.
Can a kiosk keep up with a busy location?
Yes. The hardware and software are built for high transaction volumes and daily wear, so the kiosk keeps paying out through peak hours. For the busiest rooms, the EX450 holds the most cash.
Do the kiosks need an internet connection?
No. A RedPlum kiosk and cabinet work together with or without a network. With a connection, every payout also reports to RedPlum Connect. See pairing a machine to a kiosk for setup steps.
How secure are they?
Tickets are encrypted, and each one is checked before any cash comes out. The E450 and EX450 have a 5 mm safe door with an electronic lock. The F600 and F600-V lock with a safe belt and padlock.
What maintenance do they need?
Very little. Refill the cash cassettes and keep the software updated. Our guide to cash redemption kiosk maintenance covers the rest.
Do you help with installation?
Yes. Professional installation support comes with the kiosk: we set it up, connect it to your machines and existing systems, and make sure it's ready to pay out from day one.
What support do you offer after installation?
Call or email us from 9 AM to 9 PM, seven days a week. Our team can also connect remotely to sort out an issue, and regular software updates keep the kiosk current. The support page has setup guides.
Where can I put one?
Anywhere you run skill games: convenience stores, gas stations, smoke shops, liquor stores, bars, game rooms and family entertainment centers. The C200 and FD300 sit on a counter or mount on a wall. The other four stand on the floor.
From the blog
More on running redemption at your location.
-
What to Know About the Key Features of Ticket Redemption KiosksThe features that speed up payouts and keep a busy floor moving.
Read the post -
How to Maintain Your Cash Redemption Kiosk for Long-Term PerformanceSimple routine care that cuts downtime and repair costs.
Read the post -
How Missouri Stores Increase Profits Using Skill Games & Redemption MachinesHow retailers pair skill games with payout kiosks for repeat visits.
Read the post
Get a quote
Price a ticket redemption kiosk for your location.
Tell us which model, how many and where they're going: we supply ticket redemption machines to operators in Texas, Missouri, Nebraska, Virginia and Florida. Sales comes back with a configuration and a price. Not sure which model? Tell us about the location and we'll recommend one.
